ACS1 ANTENNA CONTROL SYSTEM
Complete automated steptrack antenna control system solution. Full featured yet economically priced. User friendly interface w/full serial M&C. Many system options available. Manual positioning, stored position, and automatic tracking all standard. Inclined satellite orbit tracking ready. Multi-band operation (L, C, X, & Ku).
Complete automated steptrack antenna control system solution. Full featured yet economically priced. User friendly interface w/full serial M&C. Many system options available. Manual positioning, stored position, and automatic tracking all standard. Inclined satellite orbit tracking ready. Multi-band operation (L, C, X, & Ku).
CLICK IMAGE FOR CUT SHEET
ACU1 ANTENNA CONTROL UNIT
Versatile automated steptrack and antenna position control unit. Full featured yet economically priced. User friendly interface w/full serial M&C. Many system options available. Manual positioning, stored position, and automatic tracking all standard. Inclined satellite orbit tracking ready.
Versatile automated steptrack and antenna position control unit. Full featured yet economically priced. User friendly interface w/full serial M&C. Many system options available. Manual positioning, stored position, and automatic tracking all standard. Inclined satellite orbit tracking ready.
CLICK IMAGE FOR CUT SHEET
MCU1 MOTOR CONTROL UNIT
Three Axis 3 Phase Motor Controller. 208 or 380 VAC up to 15 FLA. Developed to replace the legacy Electrospace Systems 83MC-4 Motor Controller. Various options including 2-speed available. Convenient front panel local control switches. Provides full motor circuit breaker protection. Compatible with BCS ACU1 & MCU2 as well as ESI 93C-23 & 83MC-5.
Three Axis 3 Phase Motor Controller. 208 or 380 VAC up to 15 FLA. Developed to replace the legacy Electrospace Systems 83MC-4 Motor Controller. Various options including 2-speed available. Convenient front panel local control switches. Provides full motor circuit breaker protection. Compatible with BCS ACU1 & MCU2 as well as ESI 93C-23 & 83MC-5.
CLICK ON IMAGE FOR CUT SHEET
MCU2 MOTOR CONTROL UNIT
Az & El 3 Phase High Speed (Slew) Motor Controller. 208 or 380 VAC up to 15 HP. Developed to replace the legacy Electrospace Systems 83MC-5 Motor Controller. Used in conjunction with the BCS MCU1 or ESI 83MC-4. Provides full motor overload protection. Compatible with BCS MCU1 as well as ESI 83MC-4.
Az & El 3 Phase High Speed (Slew) Motor Controller. 208 or 380 VAC up to 15 HP. Developed to replace the legacy Electrospace Systems 83MC-5 Motor Controller. Used in conjunction with the BCS MCU1 or ESI 83MC-4. Provides full motor overload protection. Compatible with BCS MCU1 as well as ESI 83MC-4.
CLICK ON IMAGE FOR CUT SHEET
MCU3 MOTOR CONTROL UNIT
Three Axis Variable Speed Motor Controller. 208 or 380 VAC up to 5 HP - 1 or 3 Phase. Designed to compliment the BCS ACU1 and to upgrade the legacy Electrospace Systems 83MC-4 Motor Controller in 93C-23 systems. Az, El, & Pol axes control standard. Allows convenient handheld local control. Provides full NEMA rated motor overload protection. Compatible with BCS ACU1 as well as ESI 93C-23.
Three Axis Variable Speed Motor Controller. 208 or 380 VAC up to 5 HP - 1 or 3 Phase. Designed to compliment the BCS ACU1 and to upgrade the legacy Electrospace Systems 83MC-4 Motor Controller in 93C-23 systems. Az, El, & Pol axes control standard. Allows convenient handheld local control. Provides full NEMA rated motor overload protection. Compatible with BCS ACU1 as well as ESI 93C-23.
CLICK ON IMAGE FOR CUT SHEET
MCU4 MOTOR CONTROL UNIT
Three Axis 3 Phase Motor Controller. 208 or 380 VAC up to 5 HP. Developed to compliment the BCS ACU1 and replace the legacy Electrospace Systems 83MC-4 Motor Controller. Low cost alternative to the variable speed MCU3. Various options including 2-speed available. Allows convenient handheld local control. Provides full motor circuit breaker protection. Compatible with BCS ACU1 & MCU2 as well as ESI 93C-23 & 83MC-5.
Three Axis 3 Phase Motor Controller. 208 or 380 VAC up to 5 HP. Developed to compliment the BCS ACU1 and replace the legacy Electrospace Systems 83MC-4 Motor Controller. Low cost alternative to the variable speed MCU3. Various options including 2-speed available. Allows convenient handheld local control. Provides full motor circuit breaker protection. Compatible with BCS ACU1 & MCU2 as well as ESI 93C-23 & 83MC-5.
CLICK ON IMAGE FOR CUT SHEET
DMC1 DIRECT MOTOR CONTROLLER
Direct 3 Phase Motor Controller. 208/230 VAC up to 10 HP. Developed to provide redundant antenna motor control in the event of primary antenna control system failure. May be used as permanently installed primary motor controller or for temporary use to allow antenna to be moved prior to master antenna control system installation. Provided with interlocking handheld controller. Compatible with most antenna control systems including BCS ACS1.
Direct 3 Phase Motor Controller. 208/230 VAC up to 10 HP. Developed to provide redundant antenna motor control in the event of primary antenna control system failure. May be used as permanently installed primary motor controller or for temporary use to allow antenna to be moved prior to master antenna control system installation. Provided with interlocking handheld controller. Compatible with most antenna control systems including BCS ACS1.
CLICK ON IMAGE FOR CUT SHEET
Model 7000 BEACON TRACKING RECEIVER
Frequency agile satellite receiver designed to provide DC reference voltage proportional to received signal strength. Available in L, C, and Ku band versions. Full featured yet economically priced. User friendly interface w/full serial M&C. Worldwide power input - autosensing. 500 MHz bandwidth & 10 KHz step size (min). Compatible with BCS ACU1, ESI 93C-23, as well as most popular antenna control systems,
Frequency agile satellite receiver designed to provide DC reference voltage proportional to received signal strength. Available in L, C, and Ku band versions. Full featured yet economically priced. User friendly interface w/full serial M&C. Worldwide power input - autosensing. 500 MHz bandwidth & 10 KHz step size (min). Compatible with BCS ACU1, ESI 93C-23, as well as most popular antenna control systems,
SYNCHRO TRANSMITTER
Used to provide absolute anglular position to the ACU1 in response to polarization axis rotation. Will replace synchros used in all Electrospace Systems legacy 93C-23 transducers and single synchro angle measuring applications. Accuracy: 0.07 degrees RMS. Standard size 11 servo interface with 1/8" shaft. Electrical connections via screw terminals. Compatible with BCS ACU1 and 93C-23.
Used to provide absolute anglular position to the ACU1 in response to polarization axis rotation. Will replace synchros used in all Electrospace Systems legacy 93C-23 transducers and single synchro angle measuring applications. Accuracy: 0.07 degrees RMS. Standard size 11 servo interface with 1/8" shaft. Electrical connections via screw terminals. Compatible with BCS ACU1 and 93C-23.
4:1 POSITION ENCODER

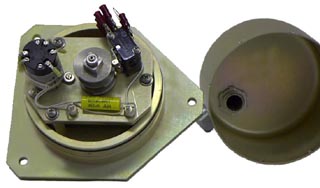

Encoder is a geared multispeed synchro combined with cam driven switches used to provide absolute anglular position to the ACU1 in response to azimuth and elevation axes rotation. Will replace Electrospace Systems legacy 93C-23 transducers. Custom front or rear mounting interface with 1/2" shaft. Electrical connections via screw terminals & lugs. Accuracy: 0.022 degrees RMS. Compatible with BCS ACU1 and 93C-23.
Encoder is a geared multispeed synchro combined with cam driven switches used to provide absolute anglular position to the ACU1 in response to azimuth and elevation axes rotation. Will replace Electrospace Systems legacy 93C-23 transducers. Custom front or rear mounting interface with 1/2" shaft. Electrical connections via screw terminals & lugs. Accuracy: 0.022 degrees RMS. Compatible with BCS ACU1 and 93C-23.
MCU HANDHELD CONTROLLER
Handheld control unit used to manually control the azimuth, elevation, and polarization antenna axes when connected to the BCS MCU3 or MCU4. Allows for normal and slew speed control selection. Rugged weather proof unit takes local control when plugged in at the MCU external handheld connector. Extension cables of up to 1000 feet available optionally. Compatible with BCS MCU3 and MCU4 only.
Handheld control unit used to manually control the azimuth, elevation, and polarization antenna axes when connected to the BCS MCU3 or MCU4. Allows for normal and slew speed control selection. Rugged weather proof unit takes local control when plugged in at the MCU external handheld connector. Extension cables of up to 1000 feet available optionally. Compatible with BCS MCU3 and MCU4 only.
ACCESSORIES
Remote monitor & control packages. MCU & DMC1 Handheld extension cables. Complete spares for BCS and ESI legacy equipment. Cable and connectorization kits for new or relocated installs. Standard and custom position encoder interface kits. Complete on-site equipment and system training courses. Various equipment and system upgrades.
Remote monitor & control packages. MCU & DMC1 Handheld extension cables. Complete spares for BCS and ESI legacy equipment. Cable and connectorization kits for new or relocated installs. Standard and custom position encoder interface kits. Complete on-site equipment and system training courses. Various equipment and system upgrades.
